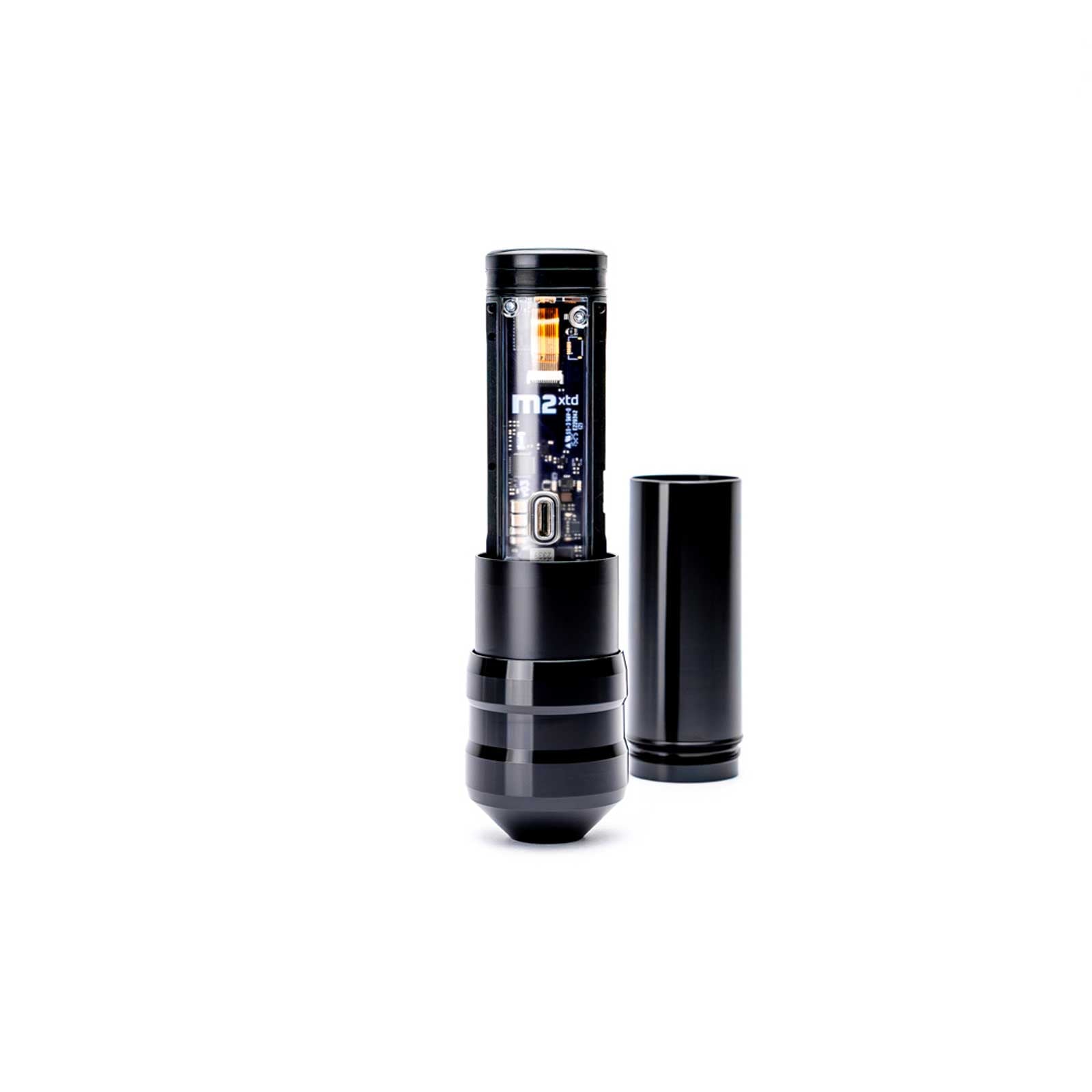

ACUS M2xtd Tattoo Machine
Out of stock
Couldn't load pickup availability
Difference between the M2 and M2x is the lithium-ion battery it accepts. M2 accepts the 18500 which has a run time of 4-6hrs. The M2x accepts the 18650 which has a run time of 9-11hrs.
Size & Weight
• Weight with battery: 204 g
• Size: 141 mm
• Diameter: 35 mm
• Grip ⌀: 33 & 40 mm
Needle Travel & Frequency
• Stepless adjustable needle depth: 0 – 4,5 mm
(larger range than M1)
• Frequency range: 36 Hz – 140 Hz (3V – 12V)
Battery & Runtime
• Exchangeable batteries: 18650
• Runtime: 9-11 h (M2)
Compatibility & Extensions
• Compatible with all ACUS Strokes
(14 options available, incl. 3.7 Standard, 4.1 Heavy, 4.5 Super Heavy)
• Compatible with all ACUS Grips 33 & 40 mm (Standard Aluminum, Heavy Steel & Disposable)
• Compatible with all standard needles
Housing & Cleaning
• Fully dismantlable (as all ACUS machines)
• Tool-free disassembly for faster stroke cam changes
• Smooth anodized aluminum housing
• Cleanable & disinfectable with autoclave & ultrasonic cleaner
Protection & Safety
• Protection against reverse polarity
• Protection against overcurrent & overheating
• Protection against drive blockage
• EMC & ESD tested – the machine undergoes electromagnetic compatibility (EMC) and electrostatic discharge (ESD) testing to ensure reliable performance and safety in professional environments
Feature
Control & Usability
• Artist presets as a guide for beginners
• Save up to 3 custom presets

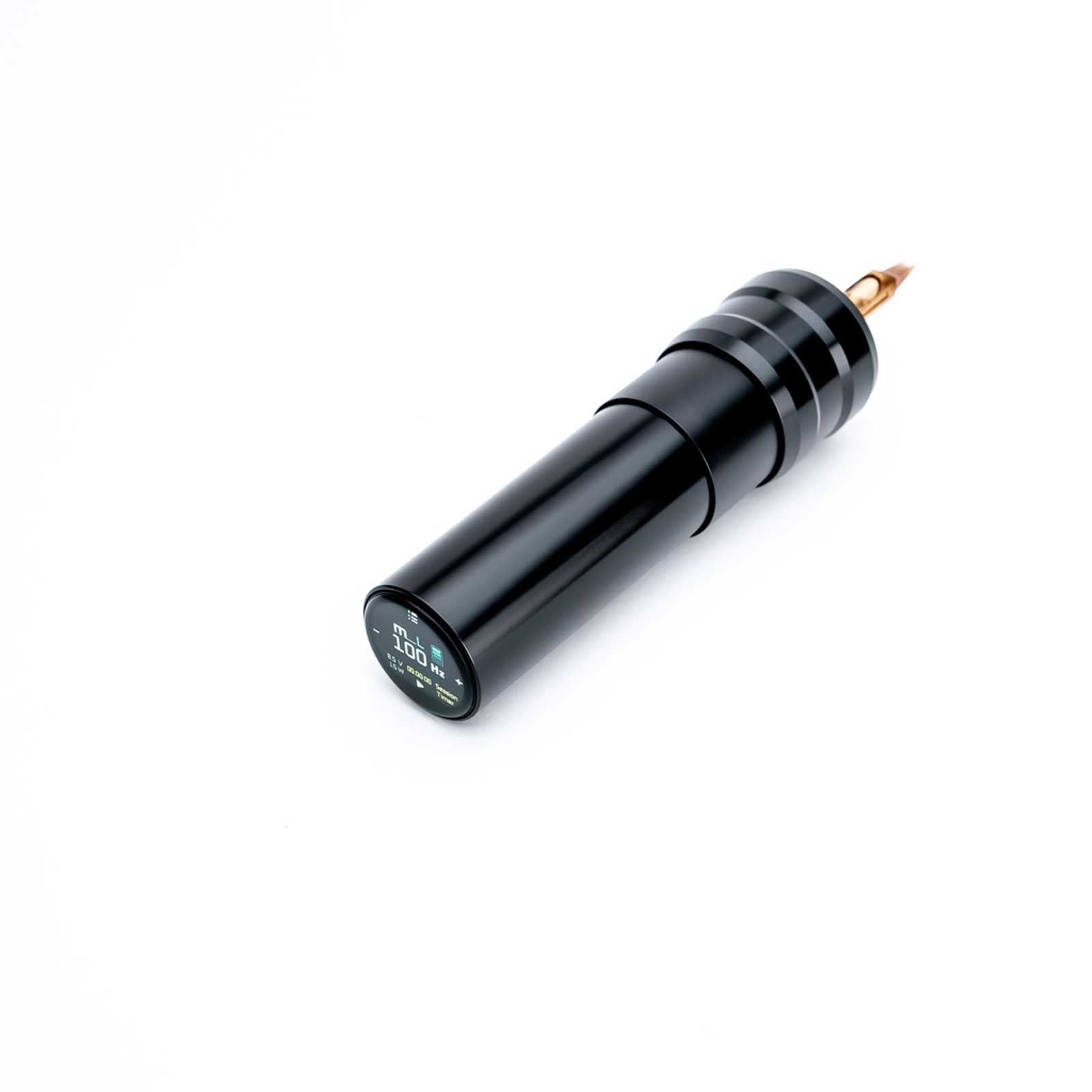

• New full-diameter display on the back with integrated buttons
• Choose to display Volts or Hz
• Session timer to keep track of time
• Adjustable settings: display brightness, auto-shutdown, display timeout
Performance & Modes
• Faulhaber 2214 BXT brushless Motor (all metal Motor made in Germany)
• New Lining Mode (m_L) with optimized needle movement for solid lines!
• Improved Torque Modes compared to M1
• Range from m_-3 to m_+2 (as known from the M1)
• Ultra-low noise and vibration (typical ACUS)
• Perfect balance → no hand fatigue
Power & Connectivity
• Fast plug-and-play software updates
• USB-C port directly on the machine (charging & software updates)
• LED charge indicator on the machine
• External 2-Slot USB-C charger to fast-charge two batteries simultaneously
Maintenance & Durability
• Tool-free disassembly → stroke cams change twice as fast
• Smooth anodized aluminum housing, easy to clean
• Cleanable with autoclave & ultrasonic cleaner
• Built-in protection: reverse polarity, overcurrent/overheating, drive blockage
Compatibility & Flexibility
• Works with all ACUS Strokes (3 included: 3.7 Standard, 4.1 Heavy, 4.5 Super Heavy – 14 options in total)
• Works with all ACUS Grips (Standard Aluminum, Heavy Steel, 33 & 40 mm, Disposable Grips)
• Compatible with all standard needles
• Wireless operation
• Easy to cover & left-hand friendly
Service & Origin
• Direct sales → talk to the developers directly
• Highest quality made in Berlin, Germany

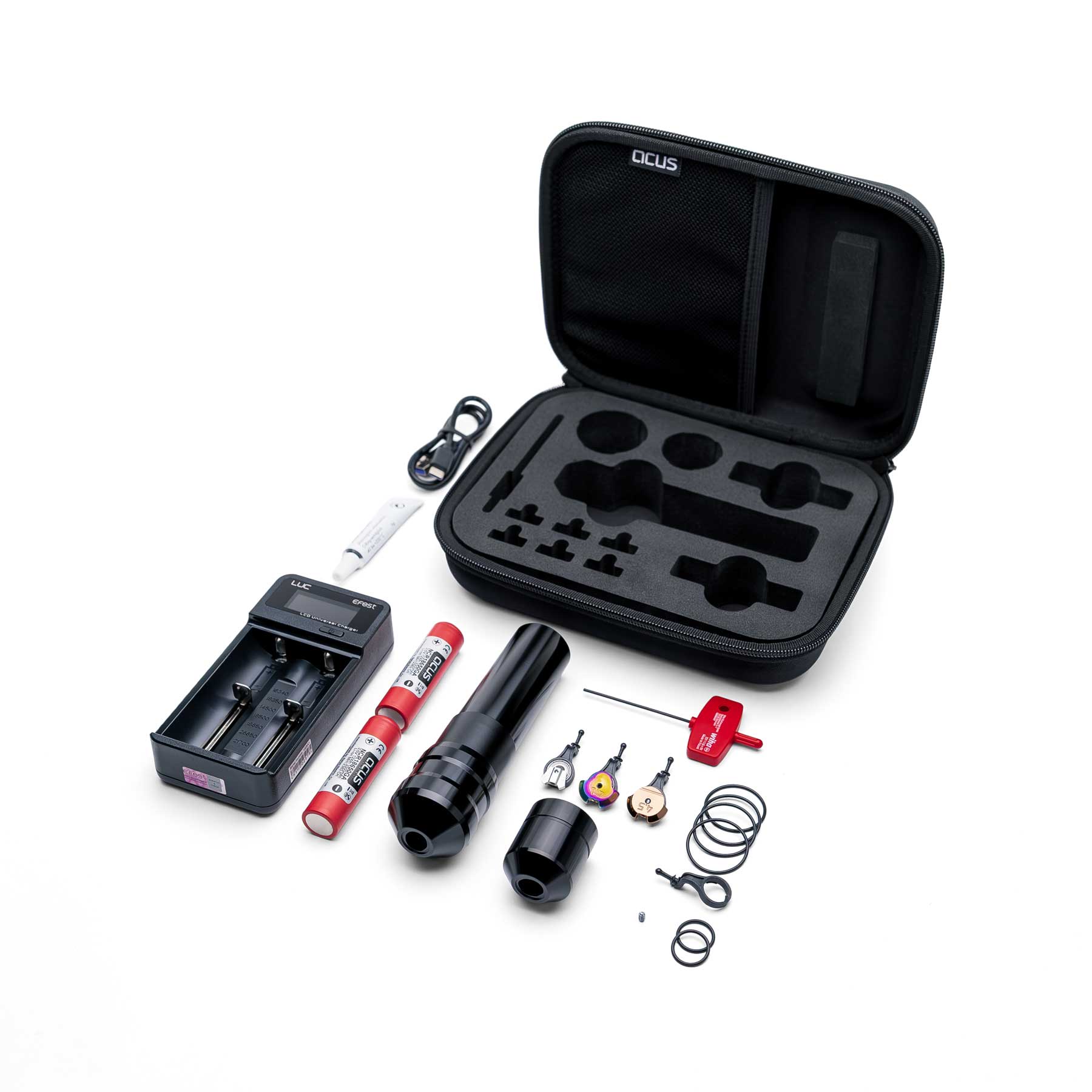

Scope of delivery
- ACUS M2X Machine
- 33 mm Grip 2
- 40 mm Grip Plus

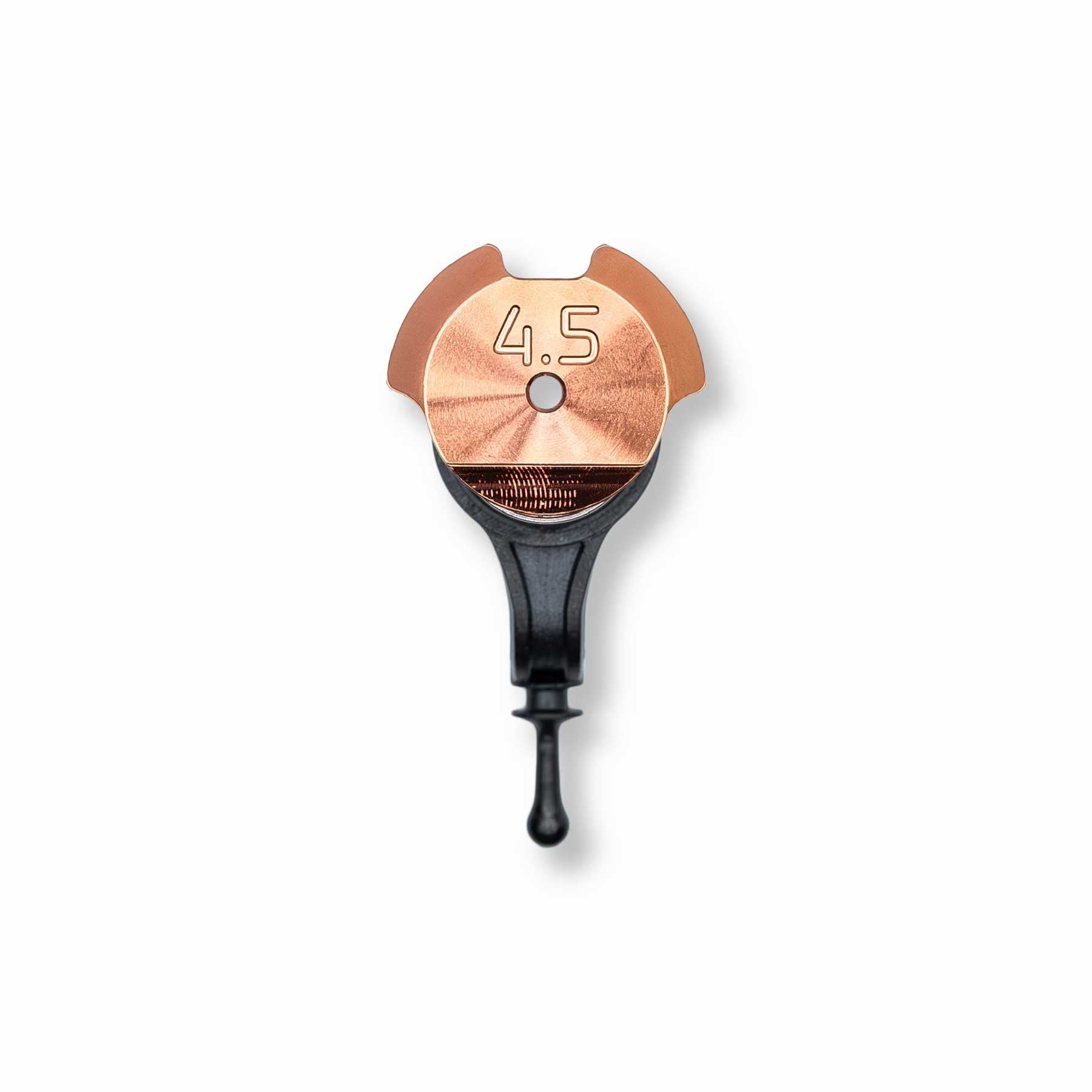

- 4.5 mm Super Heavy Stroke

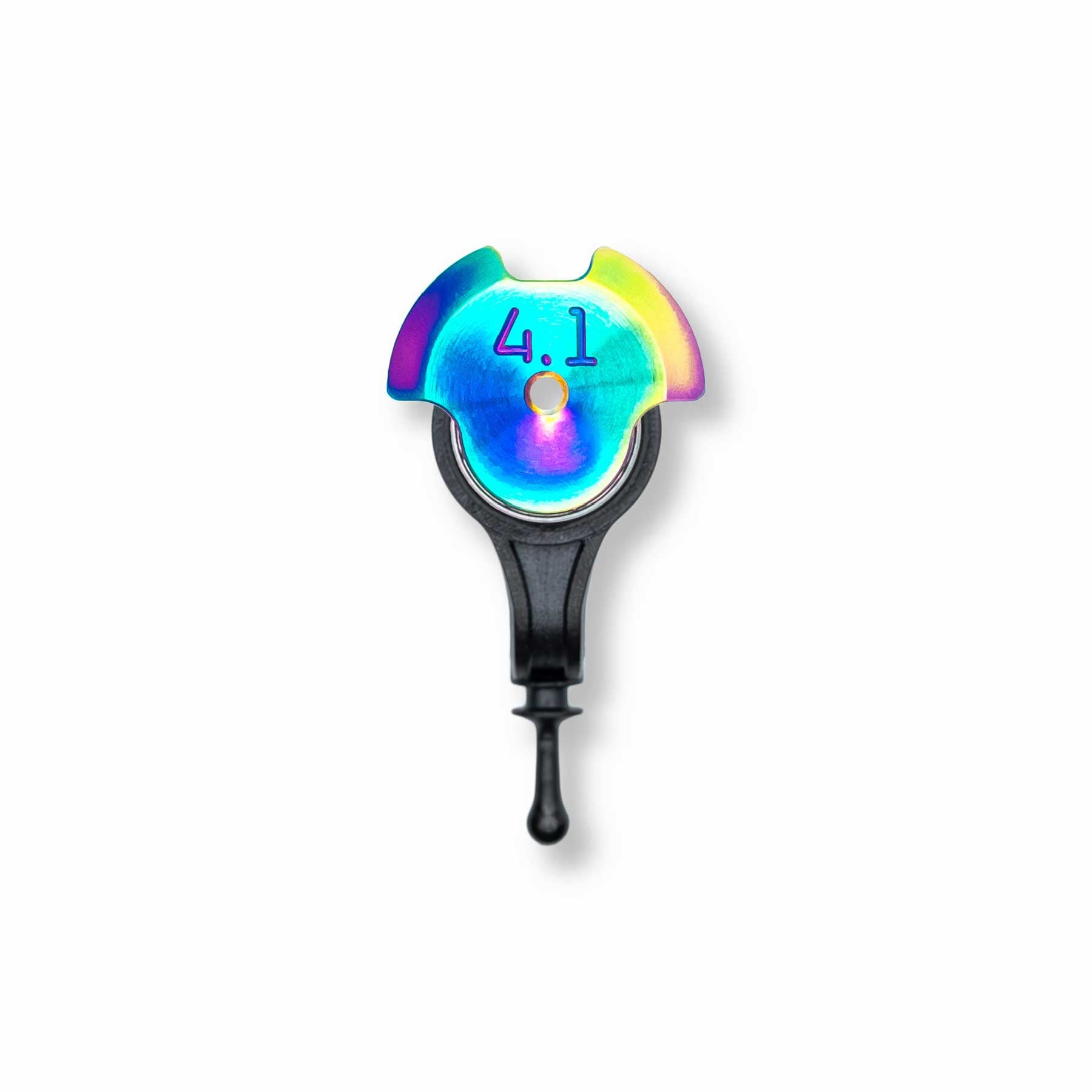

- 4.1 mm Heavy Stroke

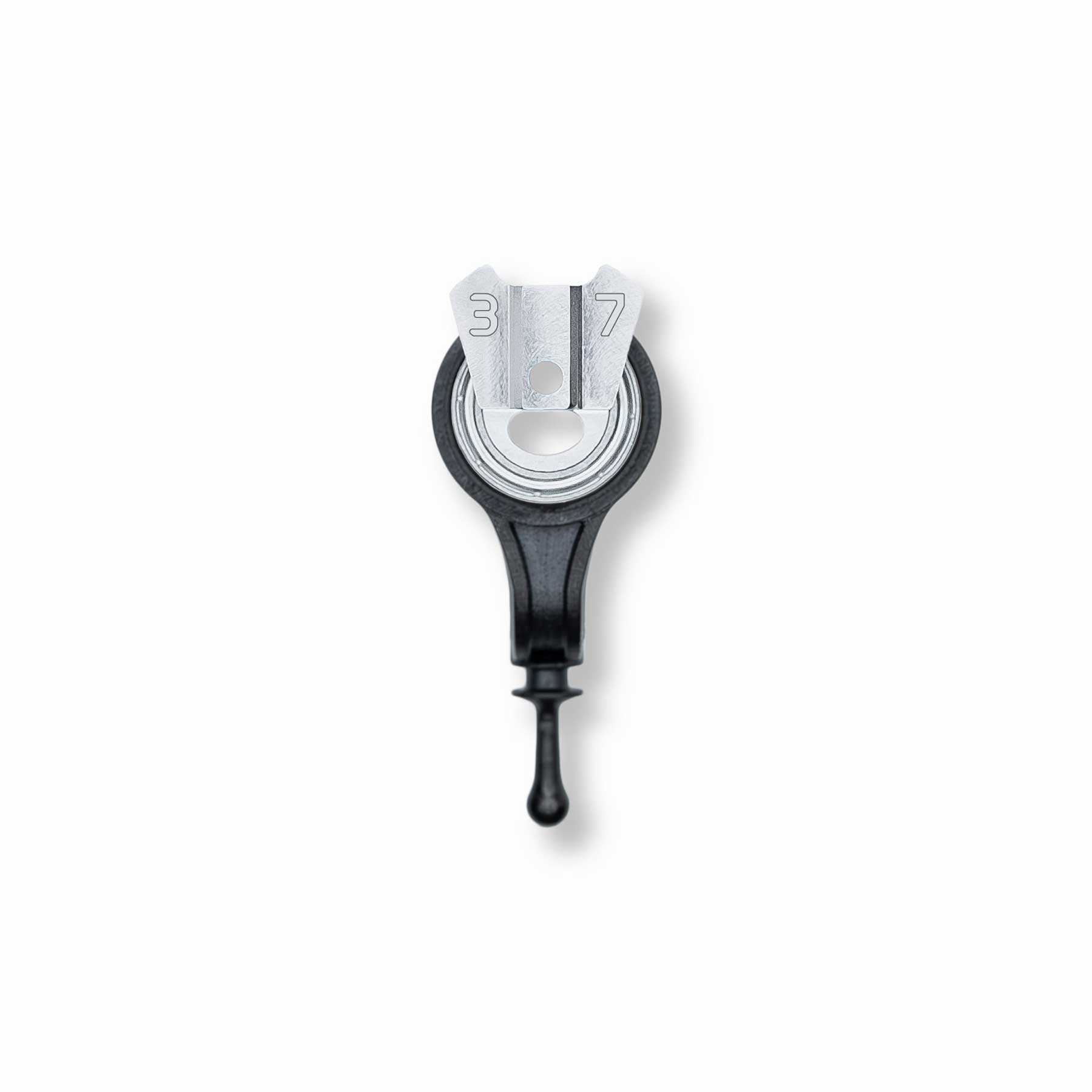

- 3.7 mm standard Stroke
- 2 Batteries 18650
- USB-C Charger
- Travel Case
- Allen Key
- Silicon Grease
- Manual
- Sticker & Magnet
|
Weight |
0,9 kg |
|
Dimensions |
27 × 21 × 7,5 cm |
|
Machine Weight |
204 g (Grip Standard) | 232 g (Grip Plus) |
|
Size |
Length: 141 mm | Ø Grip: 33 mm | Ø Grip Plus: 40 mm |
|
HTS Code |
84798997 |
|
Product description |
Tattoo machine |
|
Country of Origin |
DE |
Discount Eligibility: This product is imported and list price includes all import fees. Therefore, it is not eligible for discounts.
